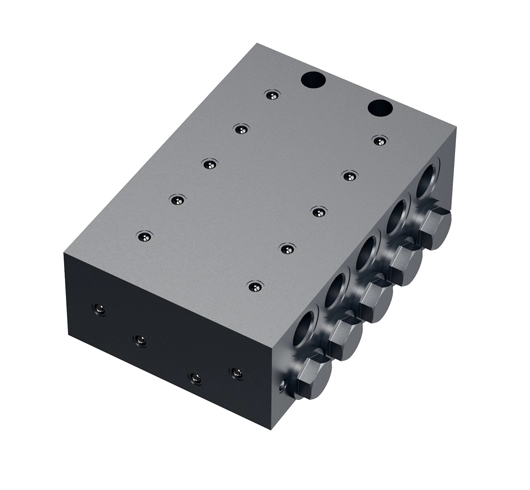

DSP Distributor Valve
It is available in 6,8,10,12,14,16,18,20 and 22 outlet versions, each with an output of 0.2 cm³ inch per cycle.
The single output of the dosing device may be combined with the one located adjacent by eliminating the special fitting and applying a plug.
An outlet can also be merged with the sequential outlet on the block by removing the special outlet fitting and installing a plug.
Visual or electronic monitoring can be achieved simply by removing a plug and installing a visual or electronic add-on device as shown below. The spools in a progressive metering valve operate sequentially partitioning equally across the outlets, the grease being pumped into the metering block inlet.
In the event of a blocked lubrication point all the spools will stop, thereby allowing the user to monitor the entire system with a single monitoring device.
The grease pumped inside of the block is distributed by the piston dispensers of the progressive dosing device equally among the different outputs. In case a single output becomes blocked, the pistons stop their activity allowing for the control of the entire system by means of a single device for this purpose.
Technical Information of DSP Distributor Valve
| TECHNICAL CHARACTERISTICS | |
Operating pressure | From 20 to 350 Bar |
Lubricants | Oil 46 cSt to NLGI-2# |
Operating temperature | -40 °C to 200 °C |
Discharge (for outlet) | 0.2ml/cyc |
Inlet port | G1/8 |
Outlet port | M10x1 |
Outlets | From 6 to 22 |
| Piston cycles | Max 200 cyc/min |
| Material | Carbon steel or stainless steel |
| Lubrication system | progressive lubrication system |

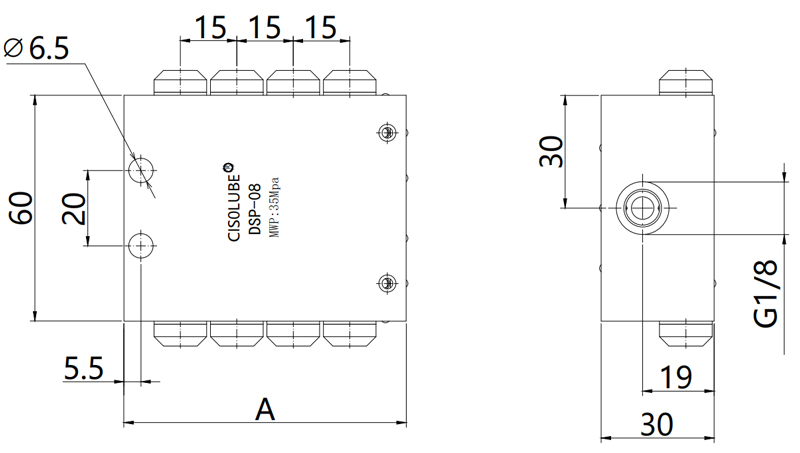

Technical Drawing of DSP Distributor Valve
| Outlets | A/mm |
| 6 | 60 |
| 8 | 75 |
| 10 | 90 |
| 12 | 105 |
| 14 | 120 |
| 16 | 135 |
| 18 | 150 |
| 20 | 165 |
| 22 | 180 |
Characteristics of DSP Distributor Valve
Pump oil and grease
Min. Pressure: 20 Bar, 300 psi
Max. Pressure: 350 Bar, 5075 psi
Operating Temperature:
-40 ~ +200 ºC
Lubricant viscosity: Oil- NLGI 2
Material: carbon steel or stainless steel
Proximity Type: PNP or NPN 10-30V DC-200 mA
Cisolube offers custom grease distributor with wide selections, Contact now.
