PMN Chain Lubrication Pump
Simple design, strong structure, easy to install, especially suitable for agricultural machinery.
Use in harsh environments.
The PMN lubrication system made up of a 4 or 7 litre reservoir with suction filter, metering pieces and brushes Lubrication system, the demand of each lubrication point can be adjusted by adjusting the metering parts. The volume can be set, and the total system can also be adjusted by the PMN plunger motion stroke Total oil output.
The PMN system is especially suitable for the chain lubrication requirements of agricultural equipment such as round baler and harvester. For the reason that the push rod is driven by the drive device on the side of the rear compartment door, the drive system follows the stroke of the piston (15mm maximum) and the maximum number of strokes (5 strokes/minute).
PMN lubrication pumps are also suitable for other lubrication requirements, such as gearbox, guide rail, chain, etc., and also for applications that need to maintain constant pressure lubrication.
Technical Information of PMN Chain Lubrication Pump
P.N | Part number | Order number | Lubrication systems |
Pump | PMN | 27051 | chain lubrication systems |

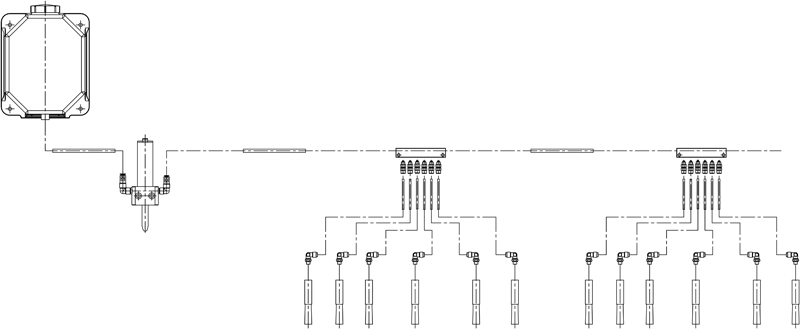

Structure Diagram of PMN Chain Lubrication Pump

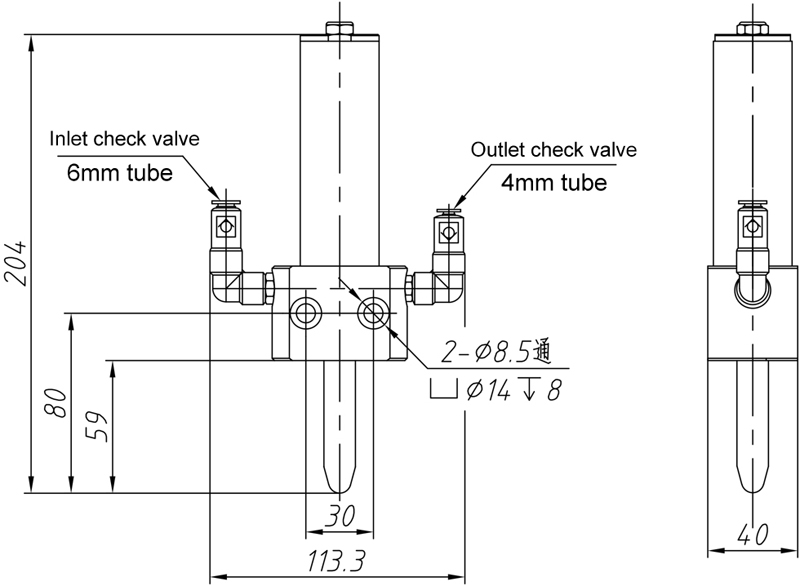

Dimensions(mm) of PMN Chain Lubrication Pump
Characteristics of PMN Chain Lubrication Pump
No motors and controller
Significantly reduce maintenance costs
Simple installation, small size
Metered lubrication of each area as required
Protect the lubricated parts with an uninterrupted frequency
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
