PMV Chain Lubrication Pump
PMV is a multi-point piston pump operated by a cam system and designed to feed several independent lines up to a maximum of 12 outlets.
Characterised for its robustness and reliability, it is particularly suitable for lubricating systems installed in difficult environments.
The pump is designed to supply single-point lubrication systems in agricultural machinery and various kinds of machinery for use with oil.
The "PMV" pump is designed to operate with a maximum of six pistons, which are easily adjustable on 12 outlets.
The pump is designed for merging outlets (to be defined during the order phase); the same will be provided directly to the merged outlets according to your specifications. Merging the two outlets will allow for the nominal flow rate of a single outlet to be doubled.
Technical Information of PMV Chain Lubrication Pump
Technical Data | |
Inlet | Ø8, Ø10 |
Reservoir | 4L, 7L |
Suction height | ≤500mm |
Filter Rate | 20μm |
Output | Ø 4 |
Ratio | 7.6：1 11.5：1 25：1 50：1 |
Operating pressure | Max 10Bar |
Output rate | Max 0.06cc/cyc |
| Viscosity range | 25-1500cst |
| Lubrication systems | chain lubrication systems |

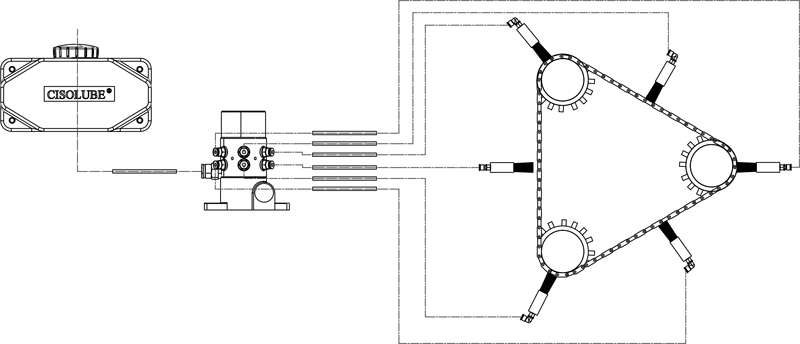

Structure Diagram of PMV Chain Lubrication Pump
Characteristics of PMV Chain Lubrication Pump
Improve machine reliability
Significantly reduce maintenance costs
Economizing lubricant
The reservoir can be placed within 0.5 m above or below the pump
The PMV pump can operate for up to 1000 hours without oil and will not get stuck without refueling.
Single-piston flow regulation is simple and fast
The piston and flow are regulated parallel to the outlet
The PMV pump is reversible, which means that its direction of rotation is not affected by mechanically driven steering
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
