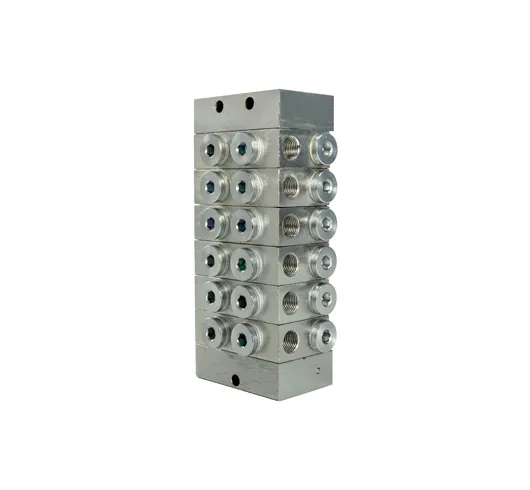

VB Distributor Valve
A typical VB distributor valve consists of a "first piece", a "tail piece" and 3 to 10 working pieces. Can provide 3 to 20 lubrication points of lubrication, VB distributor valve working piece, a variety of specifications of displacement for selection. The double outlet working piece (after the specification value of the working piece, the T represents the double outlet) has two oil outlets, which can be set as the side or upper output; the single outlet (after the specification value of the working piece, the S represents the single outlet) has one oil outlet, which can be at either end of the working piece, and the other end needs to be blocked. Note: that the double outlet working piece should not block any outlet, otherwise it will affect the normal operation.
Magnetic and electronic proximity switch cycle indicators can be easily configured to provide positive protection for successful lubrication.
Technical Information of VB Distributor Valve
Operating pressure | Max 250 bar |
Lubricants | Oil 46 cSt to Grease NLGI-2 |
Operating temperature | -40 °C to 110 °C |
Inlet port | R1/8 |
Outlet port | M10x1 |
Outlets | MAX 20 |
Max inlet | Max 280cyc/min |
| Coating | Zinc-Nickel plated |
| Lubrication system | progressive lubrication system |

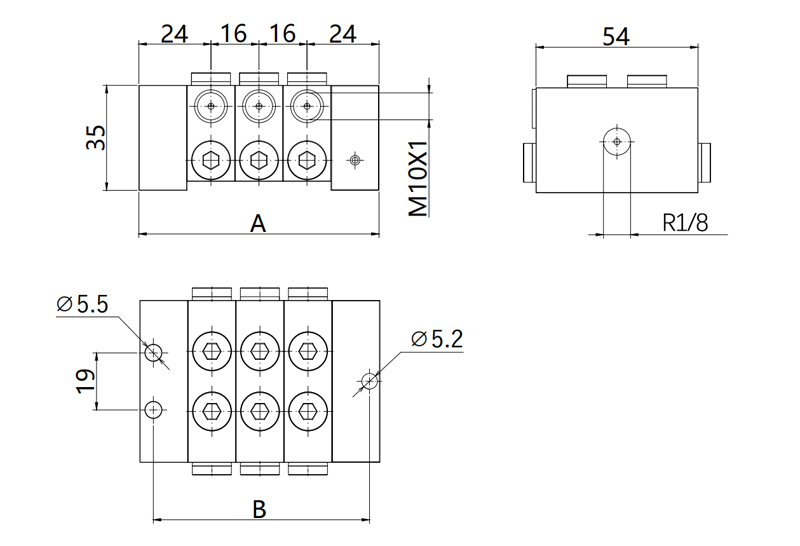

Technical Drawing of VB Distributor Valve
| Number of work | A(mm） | B(mm） |
| 3 | 80 | 72 |
| 4 | 96 | 88 |
| 5 | 112 | 104 |
| 6 | 128 | 120 |
| 7 | 144 | 136 |
| 8 | 160 | 152 |
| 9 | 176 | 168 |
| 10 | 192 | 184 |
Cisolube offers custom grease distributor with wide selections, Contact now.
