GTS Single Line Lubrication Pump
GTS pump is a piston pump predisposed to operate with a maximum of one pumping unit. Its design is particularly suitable for single-line systems.
There are two model modes:
Standard: can be managed by an external PLC. Since it does not come with an internal control unit, this is the most economic solution for lubricating your systems.
Automatic: With integrated control system, which can be set up local running time. Equipped with local operation and alarm light, alarm with buzzer, provide low level and pulse alarm, which can be combined with the monitor of distributor units into a perfect operating system.
Technical Information of GTS Single Line Lubrication Pump
TECHNICAL CHARACTERISTICS | |
Voltages | 12VDC, 24VDC, 220V |
Unit of pump outlets | 1 |
Outlet thread | G1/4 |
output | max. 15 ml/min(one pump element) |
Working pressure | adjustable from ±70 to 150bar |
Reservoir Capacity | 2L/4L/6L/8L |
Lubricants | OIL, 000, 00, 0, 1 |
| Operating temperatures | -50-90℃ |
| Lubrication system | single line lubrication system |

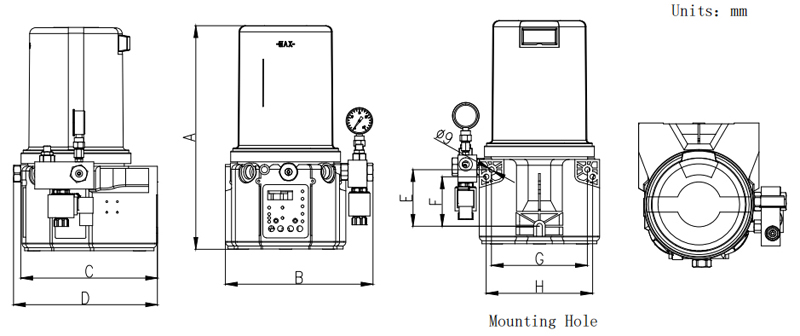

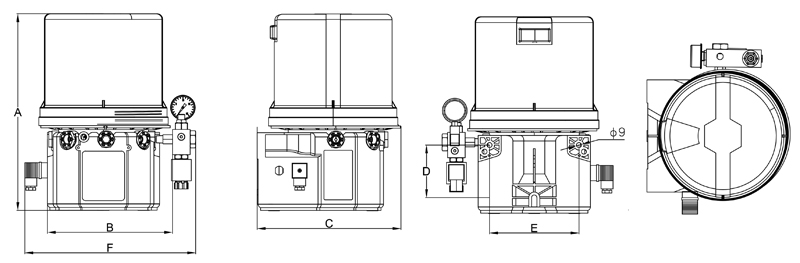

Technical Drawing of GTS Single Line Lubrication Pump
Reservoirs | A | B | C | D | E | F | G | H |
2L | 338 | 255 | 229.5 | 248 | 95.5 | 83.5 | 162.5 | 180 |
4L | 378 | 255 | 229.5 | 248 | 95.5 | 83.5 | 162.5 | 180 |
Reservoirs | A | B | C | D | E | F |
6L | 358 | 256 | 256.5 | 95.5 | 162.5 | 255 |
Characteristics of GTS Single Line Lubrication Pump
oil and grease
Reservoirs: 2L/4L/6L/8L
Voltages: 12VDC/24VDC/220V
Multiple grease filling ways
Powerful centralized control system
CE Certification
Design patent
IP67
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
